YD laser AG series coil fed laser cutting machine / 2D Laser Cutting Machine

AG系列滚动平台激光切割机

Overview

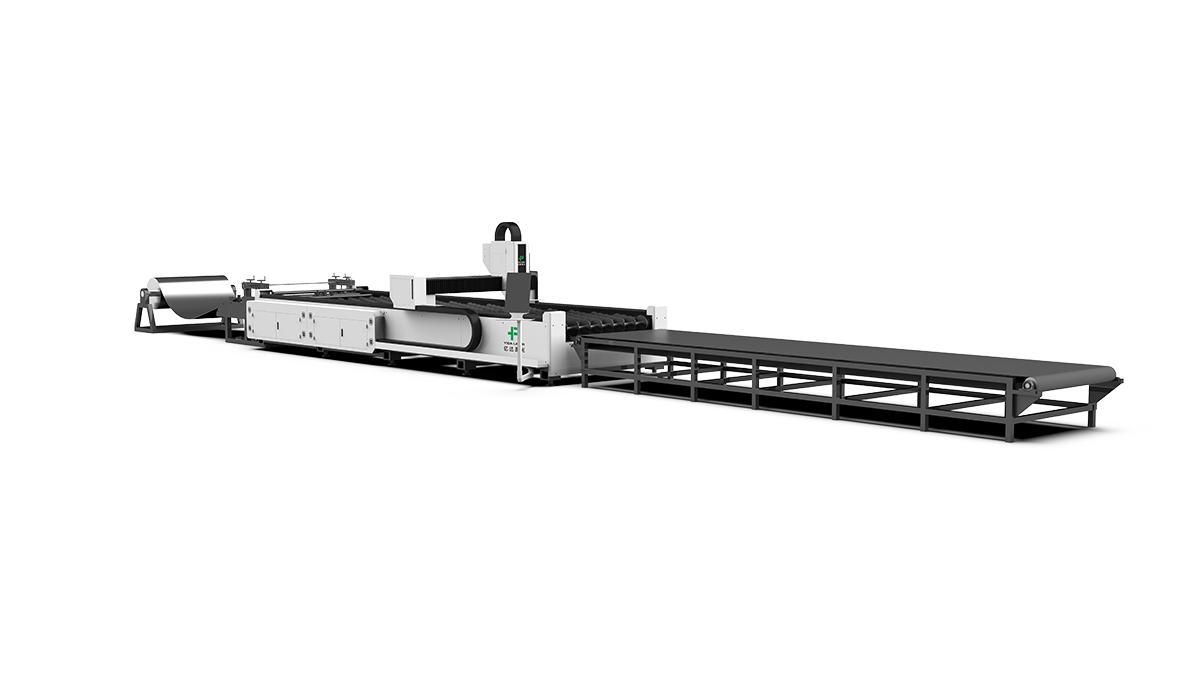

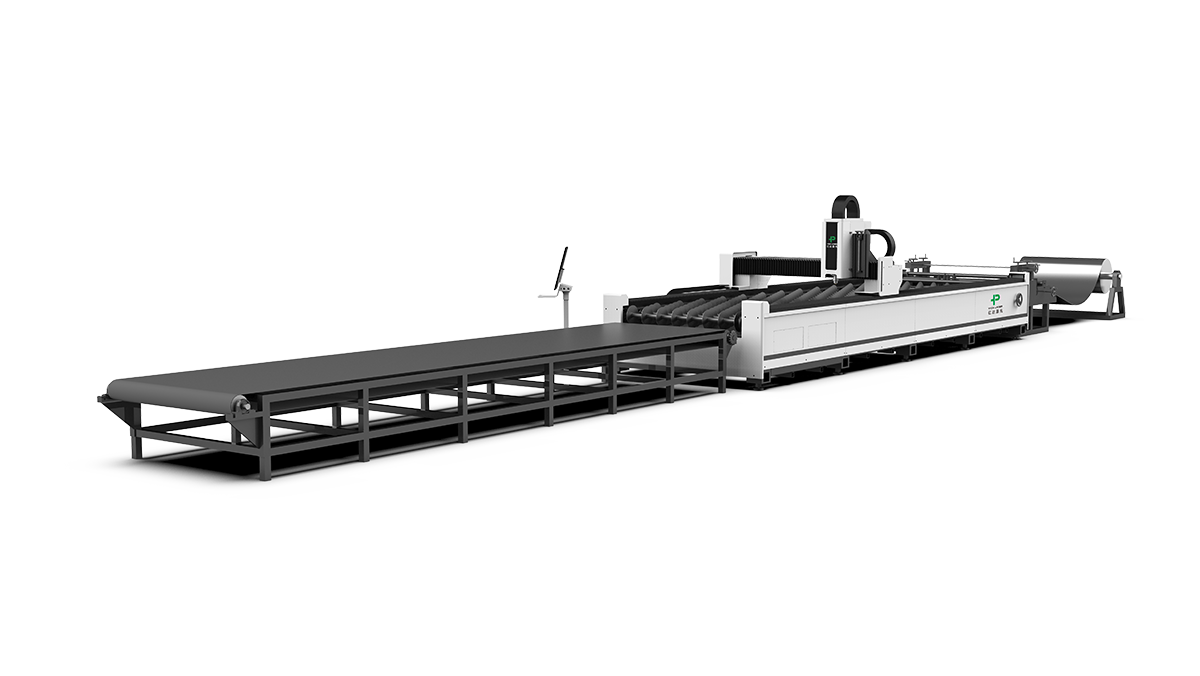

Laser plate cutting machine, laser cutting machine, YD laser AG series coil fed laser cutting machine, casting bed body, specialize for coil processing .

Continuous laser cutting and production, with high machine utilization rate.

The steel coil will be rolled out, level it and continuously feed it to laser cutting machine, effectively shorten the parts cutting time & improve the machine efficiency.

Production is flexible.

It can be responded to the needs of production & parts changes at any time. When the parts change, it just need to modify the 2D graphics through programming software, then continue to cut desired parts without any others machine setting.

With automatic nesting function, it effectively to nest the parts to reduce wastage of the material.

The auto nesting function can arrange the required quantities of individual parts into the desired material size, and to be produced at any time according to the customer’s need. The automatic nesting program can bring the benefit by increasing the efficiency of material utilization, reduce the waste of material and reduce the production cost.

Low processing cost

The mass production by using coil fed laser cutting system, beside the cost of machine investment, you are getting huge benefits from its high efficiency in laser cutting, less material wastage and importantly overall production cost is greatly reduced.

YD Laser Technology

Parameters of rolling platform laser cutting machine
Model	YD-6015AG
Max Acceleration	1G
Max Simultanous Speed	90m/min
Position Accuracy	±0.05mm
Repeatability Accuracy	±0.03mm
Processing Format	6000*1500mm
Laser Power	1000-3000W
Machine Weight	3.7-4T
Coil Opening Speed	25-30m/min
Coil Material Thickness	0.5-2mm
Reel Stand	Duo/(Quadruple
Material Feeding	Hob Gear/Plate Roller

Laser cutting can be used in different field according to application.

rail transit

Aerospace

Automobile manufacturing

Ship manufacturing

Kitchen utensils

Elevator manufacturing

Sheet metal processing

Household Electric Appliances

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.

Auto Optimize Imported Drawing
CypCut will automatically optimize the errors when import drawing, delete duplicates and invisible graphic, smooth curve and join line segments etc.
Graphical Cutting Technique Setting
Graphical design of technique setting, quick and easy to finish setting of lead line, micro-joint and kerf width compensation etc. of single or large quantity parts.
Flexible Production Mode
CypCut provides floating and workpiece coordinates for small and large quantity production.
Statistic of Production
Thorough and timely statistic of machine production to help you manage the task schedule.
Precise Edge Finding
Support capacitance and photo-electric sensing to find workpiece edge and offset sheet placement angle.
Dual-Drive Error Offset
Auto correct the dual-drive position error each time after machine axes return origin.

FSCUT7000 is EtherCAT system developed for ultrafast picosecond and femtosecond laser precision cutting. Adopting latest algorithm and EtherCAT technology, by standard communication protocol and parallel PLC, it can achieve high speed and precision laser control of 0.1um~10um interval (PSO), and highly automated production.

Technical Data

Control software	UltraCut
Bus station	CypTronic-EP PC
I/O station	HPL2720E BUS I/O terminal board
I/O station	BCL4516E BUS I/O extension board(optional)
Power supply	24V DC/5A
PSO	Support 9 laser control modes, laser on interval 0.1μm-10μm can be adjusted
Motor control	Support up to 32 EtherCAT servo axes control in same time
Extension	Support up to 32 EtherCAT I/O stations
Acceleration	Maximum control acceleration 5G
Precision	Theroical control precision ±1um
Work environment	Temperature: 0~60℃
Work environment	Humidity: 10%~90%RH(no condensation)

Benefits

Function Features	Support laser position synchronized output (PSO function), laser output interval 0.1-10μm.
	Support 9 laser control modes, and compatible with various ultrafast laser brands.
	Communicate with laser by RS232 and Ethernet for parameter and status access.
	Support technique of transition line, lead line, Fly Cut, speed turning point, speed adjust in curve position.
	Support dual-Y structure production.
	Support to edit and execute parallel PLC process.
	Compatible with ModbusTCP, ADS and other standard protocols to guarantee online production.
	Provide optional vision positioning module to locate production by circle and cross mark.
Control performance	Communication: RTOS real time core, signal cycle 1ms.
	Precision: control precision 1μm.
	Support compensate pitch error from interferometer measure data, also support offset mechanic orthogonality.

Application

Applied in ultrafast picosecond and femosecond laser precision cutting. Widely used in fragile material cutting like glass, ceramic, display screen, semiconductor and photovoltaic materials etc.

This product specification may differ from the description subjected to countries rules and regulation. We reserve the right to amend according to technology, equipment model, price and range of accessories. Please contact your local agent to find out more about our products.
